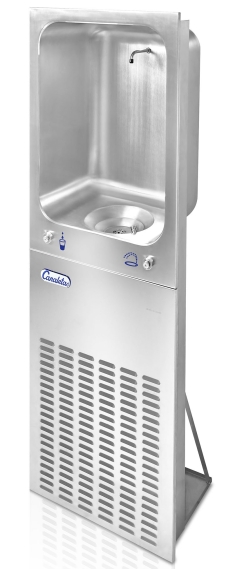

Drinking fountain SERIES EN

• Ideal for built-in installation in hallways, corridors or smaller spaces.
• The installation of the cooling unit and water plate behind the wall offers uninterrupted corridor space.
• All elements manufactured from stainless steel: top plate, front panels, internal chassis and cooling unit.
• Large interior dimensions for comfortable drinking.
• Compact A-316 stainless steel bubbler with water guard.
• Anti-vandalism front push button and regulation of water height through exclusive high precision membrane valve.
• Deep rounded top plate with anti-splash design.
• Removable lower ventilation panel for maintenance access.
• Recessed chassis to support the top plate, front panels and cooling unit.
• Easily regulated cold water temperature (thermostat)
• Possibility of emptying the cooling unit for greater hygiene.

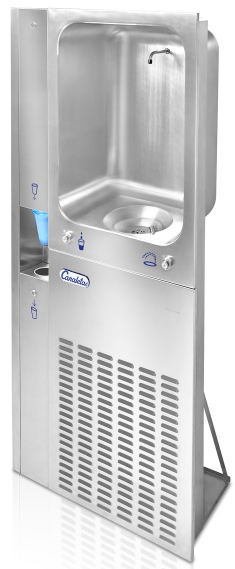

• Furthermore the possibility to drink with cups or fill bottles for LV models.
• The installation of a purification filter is recommended for better water quality.

Models with:

Conform to electrical safety standards/div>

Conform to sanitation standards

Conform to 98/83/EC standard

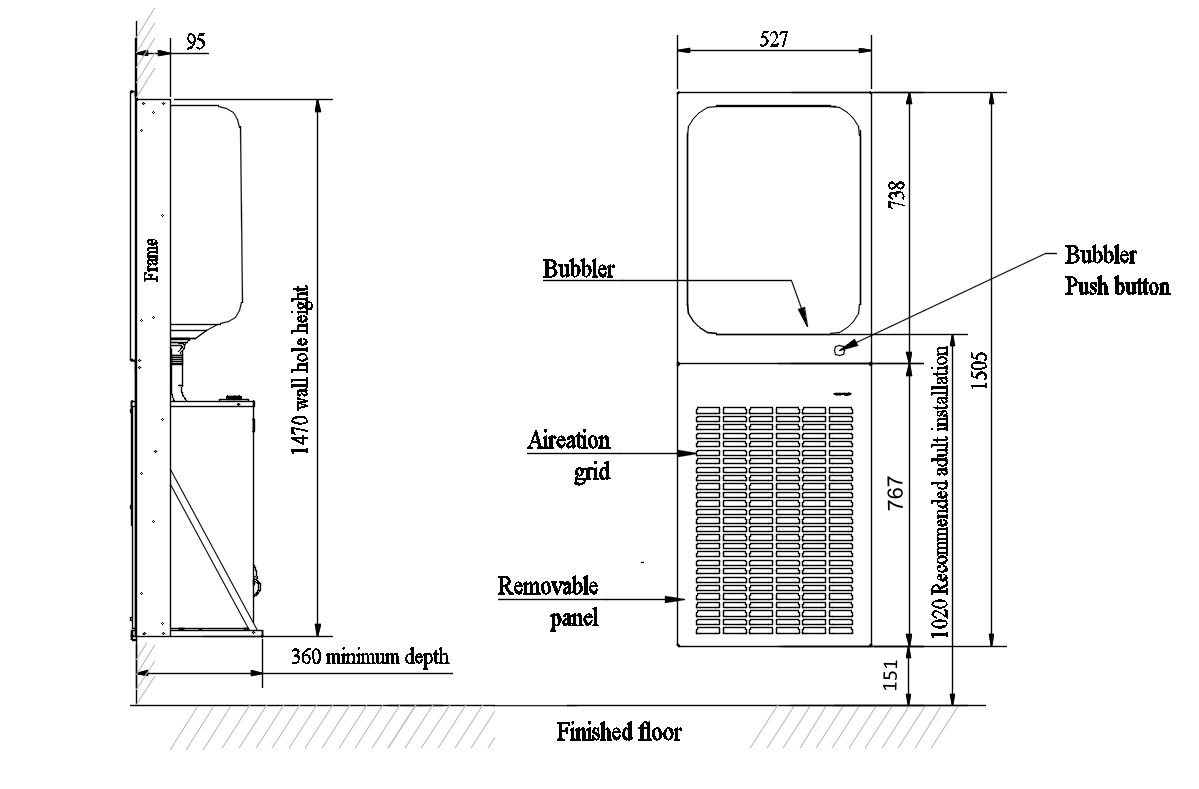

Technical data Drawings Accessories COOLING POWER (W) 600 POWER CONSUMPTION (W) 230 VOLTAGE 230V 50Hz SINGLE-PHASE (A) 1,1 COOLING CAPACITY (l/h)   50 WATER OUTPUT SPEED (l/h) 60 WATER TANK CAPACITY (l) 4.5 WATER OUTPUT TEMPERATURE (ºC) (Regulated by thermostat) 4 - 11 ECOLOGICAL REFRIGERATE GAS (CFC - free) R290 Modelo EN-8T PURIFICATION FILTERS An active carbon water filter is recommended in order to obtain optimum water conditions, thanks to the elimination of bad tastes and smells like that of chlorine and small particles or contaminants that can be present in water.   Models M-105 Plastic housing and cartridge C-115. Maximum pressure 8 Kg. / cm³ ½ inch water supply.   REPLACEMENT CARTRIDGE  Spare cartridge for filter M-105. This cartridge is specially selected by Canaletas for its drinking fountains, for their high quality and performance because these fountains require a high filtering capacity. Active carbon block cartridge with 5µm filtration and a working life of more than 22,000 liters of water or approx. 1-year duration. Combines the functions of a sediment filter, that eliminates the small particles that could be in the water, along with the properties of active carbon for possible bad tastes and smells. The polypropylene pre-filtering layer extends the cartridge life.   RECOMENDATION Canaletas recommends changing the cartridge of the purification filter once a year, especially before summer, but it could be more often depending on water quality and degree of use.       After Sales Service Canaletas After Sales Service or an authorized distributor, can offer a complete maintenance of the water cooler including the CANVAP sanitation system.   What is sanitation ?
